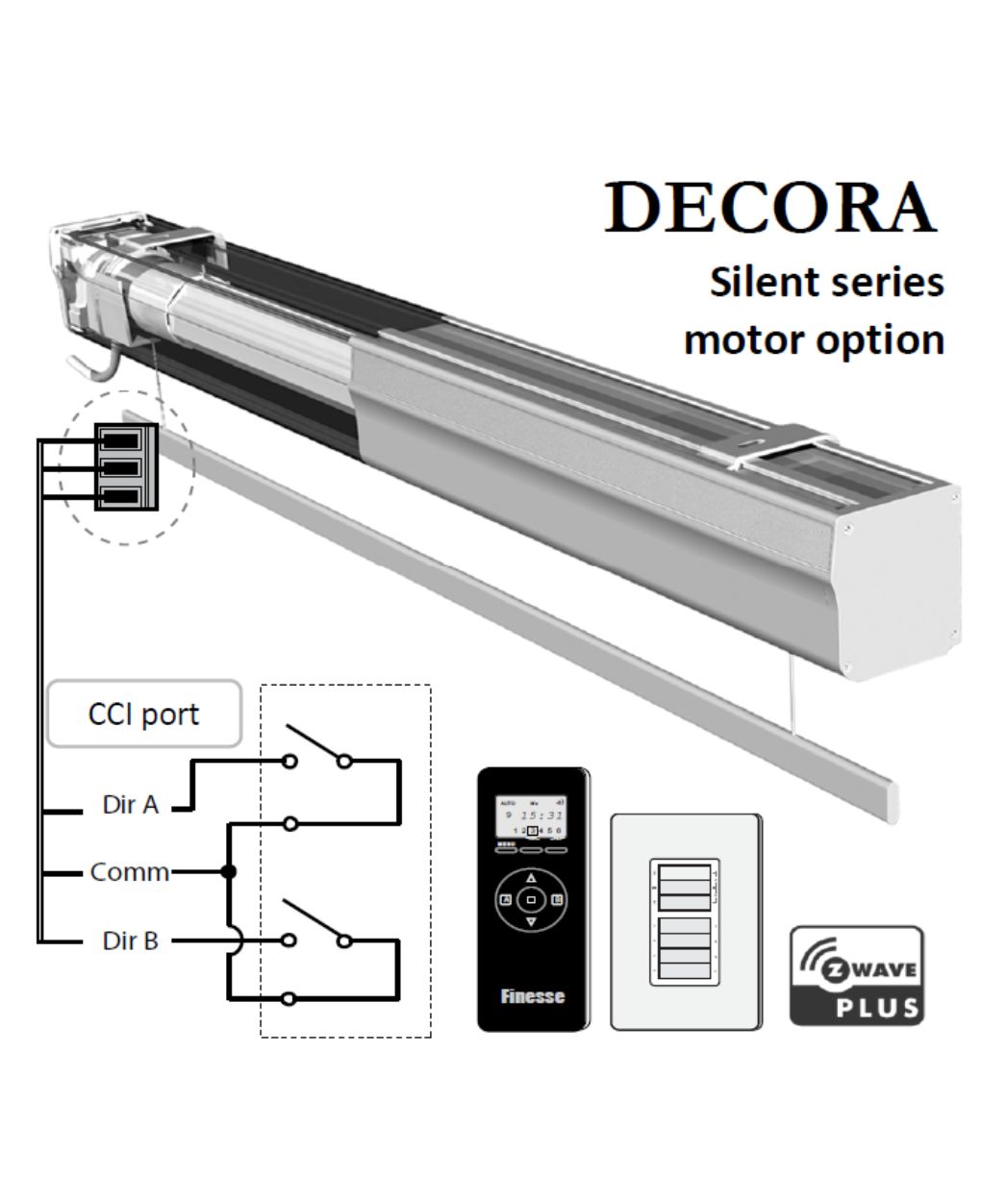

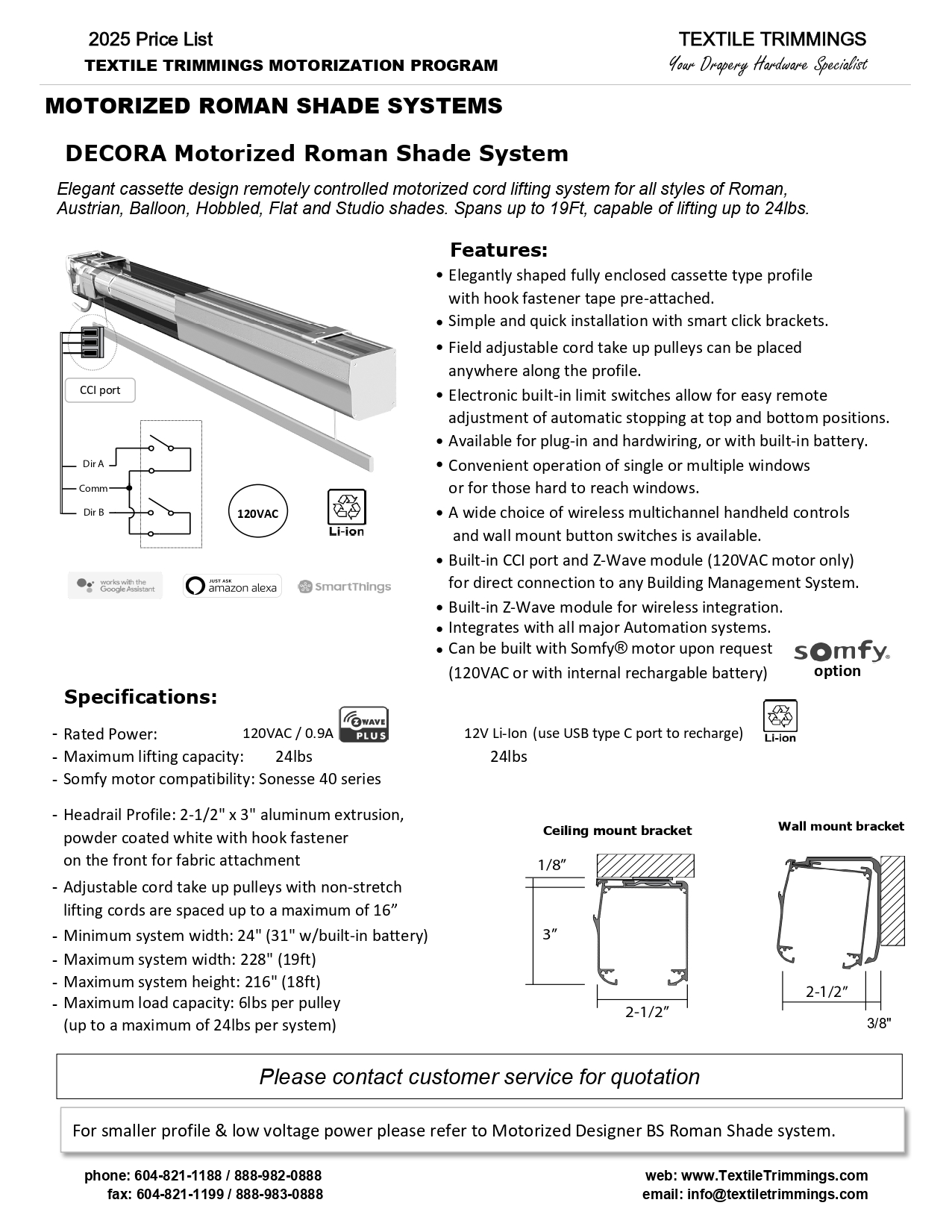

DECORA Motorized Roman Shade System
Elegant cassette design remotely controlled motorized cord lifting system for all styles of Roman, Austrian, Balloon, Hobbled, Flat and Studio shades. Spans up to 19Ft, capable of lifting up to 24lbs (30lbs with built-in battery).
Features
Elegantly shaped fully enclosed cassette type profile with hook fastener tape pre-attached.
Simple and quick installation with smart click brackets.
Field adjustable cord take up pulleys can be placed anywhere along the profile.
Electronic built-in limit switches allow for easy remote adjustment of automatic stopping at top and bottom positions.
Available for plug-in and hardwiring, or with built-in battery.
Convenient operation of single or multiple windows or for those hard to reach windows.
A wide choice of wireless multichannel handheld controls and wall mount button switches is available.
Built-in Z-Wave module for wireless integration.
Can be built with Somfy® motor upon request (120VAC or with internal rechargable battery)
Integrates with all major Automation systems.
Specifications
 |
 |
|
| Rated Power | 120VAC / 0.9A | 12V Li-Ion
(use USB type C port to recharge) |
| Maximum lifting capacity | 30lbs | 24lbs |
| Somfy motor compatibility | Sonesse 40 series | |

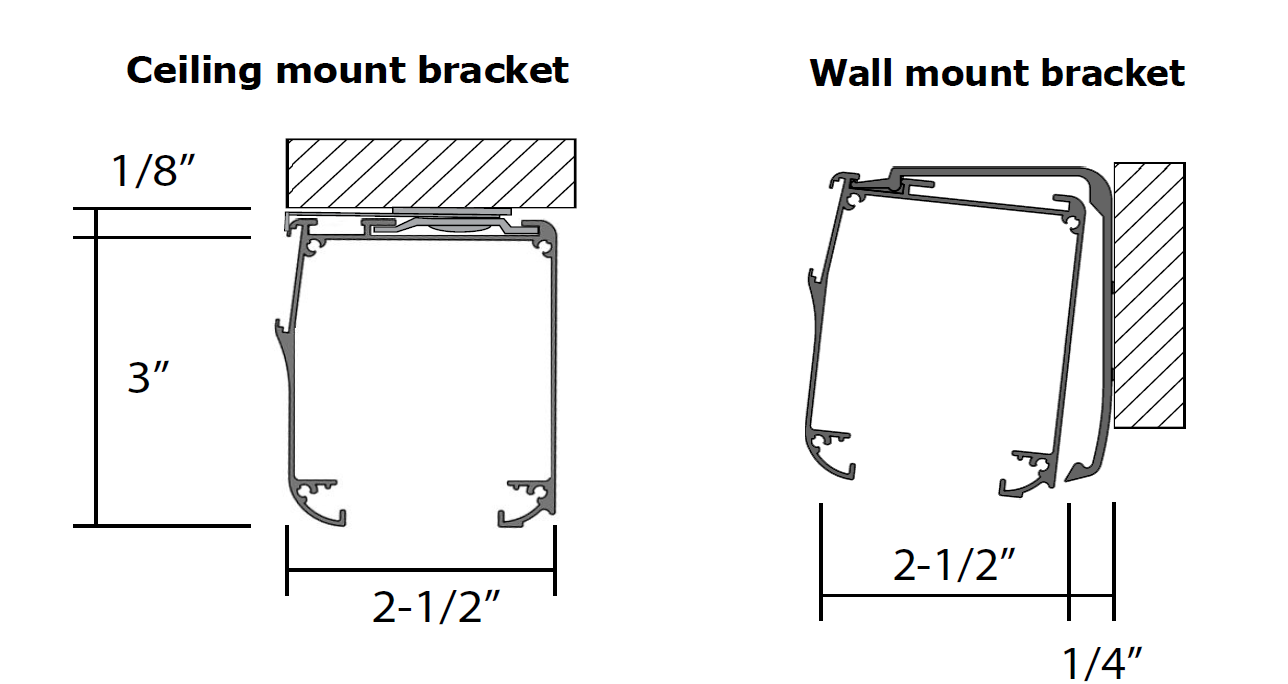

| Headrail Profile | 2-1/2" x 3" aluminum extrusion, powder-coated white with hook fastener on the front for fabric attachment | |
| Adjustable cord take-up pulleys with non-stretch lifting cords are spaced up to a maximum of 16” | ||
| Minimum system width | 24" (31" w/built-in battery) | |
| Maximum system width | 228" (19ft) | |
| Maximum system height | 216" (18ft) | |
| Maximum load capacity | 6lbs per pulley (up to a maximum of 24lbs per system) | |
