Motorized Drapery System

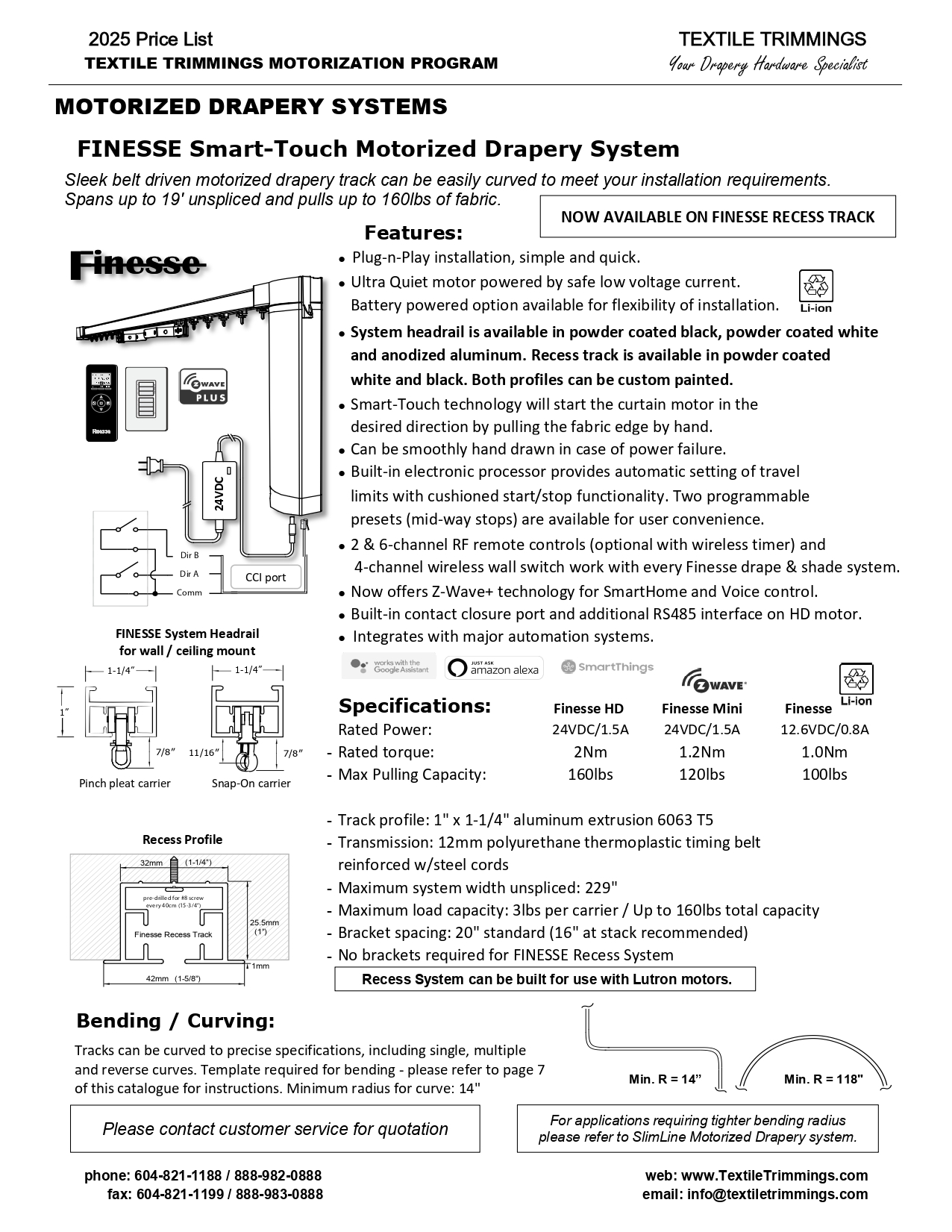

Finesse Smart-Touch Motorized Drapery System
Sleek belt driven motorized drapery track can be easily curved to meet your installation requirements.
Spans up to 19′ unspliced and pulls up to 160lbs of fabric.
Integrates with
Features
Plug-n-Play installation, simple and quick.
Ultra Quiet motor powered by safe low voltage current
Battery powered option available for flexibility of installation.
System headrail is available in powder coated black, powder coated white and anodized aluminum. Recess track is available in powder coated white and black. Both profiles can be custom painted.
Can be smoothly hand drawn in case of power failure
Built-in electronic processor provides automatic setting of travel limits with cushioned start/stop functionality. Two programmable presets (mid-way stops) are available for user convenience.
2 & 6-channel RF remote controls (optional with wireless timer) and 4-channel wireless wall switch work with every Finesse drape & shade system.
Now offers Z-Wave+ technology for SmartHome and Voice control.
Built-in contact closure port and additional RS485 interface on HD motor.
Integrates with major automation systems.
Specifications
| Finesse HD RS485 |  Finesse Z-Wave |
 Finesse Li-Ion |
|
| Rated Power | 24VDC/1.5A | 24VDC/1.5A | 12.6VDC/0.8A |
| Rated torque | 2Nm | 1.2Nm | 1.0Nm |
| Max Pulling Capacity | 160lbs | 120lbs | 100lbs |
| Track profile: | 1" x 1-1/4" aluminum extrusion 6063 T5 | ||
| Transmission | 12mm polyurethane thermoplastic timing belt reinforced w/steel cords | ||
| Maximum system width unspliced | 229" | ||
| Maximum load capacity | 3lbs per carrier / Up to 160lbs total capacity | ||
| Bracket spacing | 20" standard (16" at stack recommended) | ||
| No brackets required for FINESSE Recess System | |||
| Recess System can be built for use with Lutron motors. | |||
FINESSE System Headrail
for wall / ceiling mount
Bending / Curving
Tracks can be curved to precise specifications, including single, multiple and reverse curves. Template required for bending -please refer to here. of this catalogue for instructions. Minimum radius for curve: 14″
