Motorized Drapery System
INNOVA Motorized Decorative Drapery Rod
Smooth and quiet, belt-driven motorized decorative drapery system available in a variety of finishes.
Innova is ideal for any contemporary or traditional drape where the rod would be exposed.
Spans up to 20′ unspliced, providing unique automated decorative drapery solution.
Integrates with
Round Innova
Square Innova
Features
38mm (1.5") OD Round and 36mm Square decorative drapery rod available in 11 standard finishes.
Rod can be custom painted.

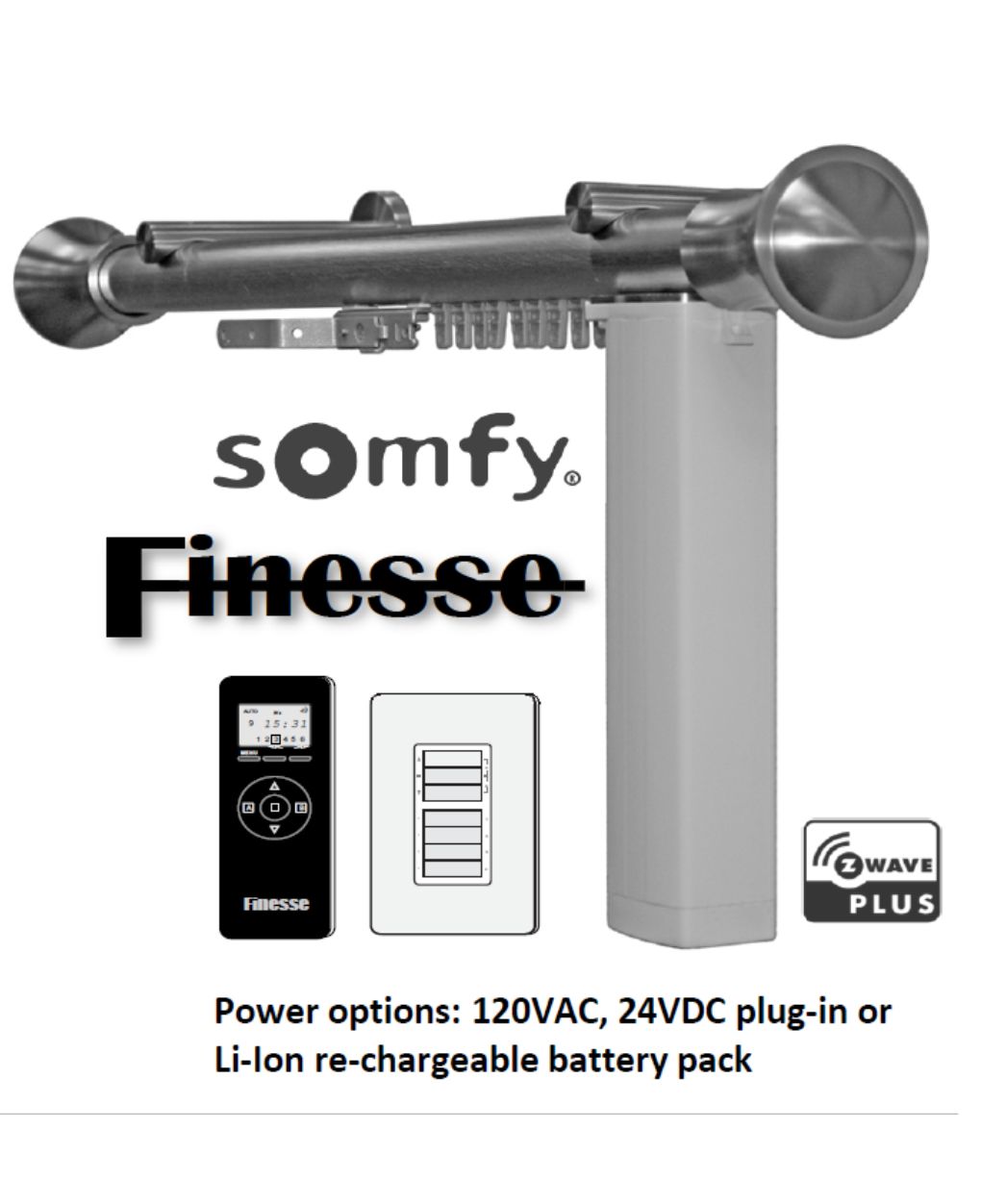

Innova system features ultra-quiet Finesse motors either low voltage DC or powered by Li-Ion rechargable battery.
Now available to be built with any of the Somfy® drapery motors or ready for use with Lutron® motors.
6-channel RF remote controls & 4-channel RF wireless
wall switch work with every Finesse drape & shade system.
Built-in electronic processor provides automatic setting of travel limits with cushioned start/stop functionality. Two programmable presets (mid-way stops) are available for user convenience.
2 & 6-channel RF remote controls (optional with wireless timer) and 4-channel wireless wall switch work with every Finesse drape & shade system.
Integrates with major automation systems.
Specifications
| Rod profile | 38mm (1.5") OD Round / 36mm (1.4") Square aluminum extrusion 6063 T5 |
| Transmission | 12mm timing belt reinforced w/steel cords |

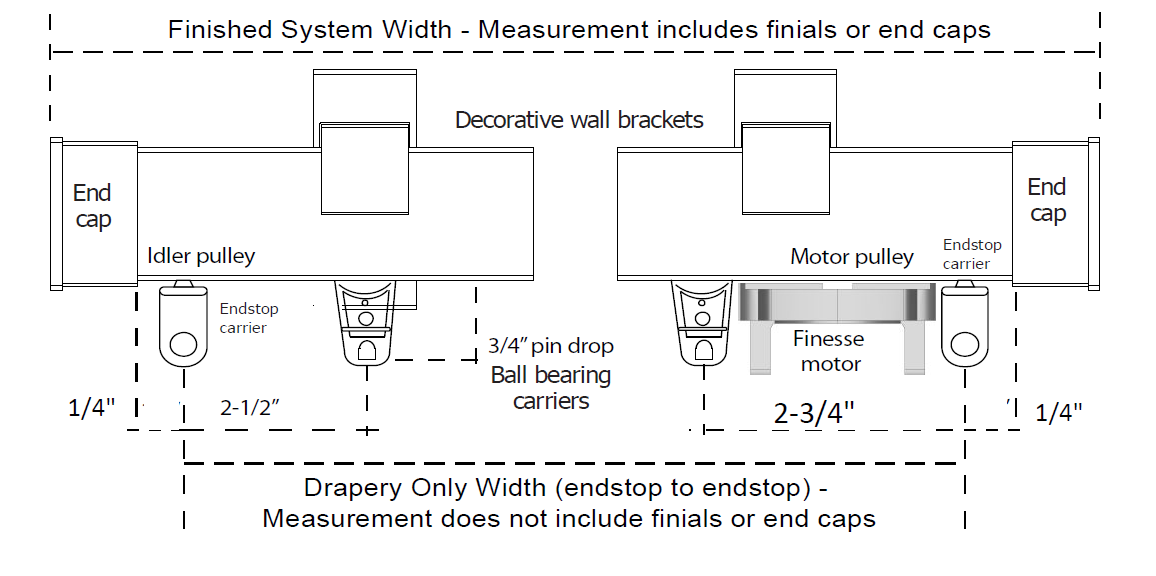

| Maximum system width unspliced | up to 240" (finials excluded) |
| Maximum load capacity | 3lbs per carrier / total capacity depends on track width with 160lbs maximum per system |

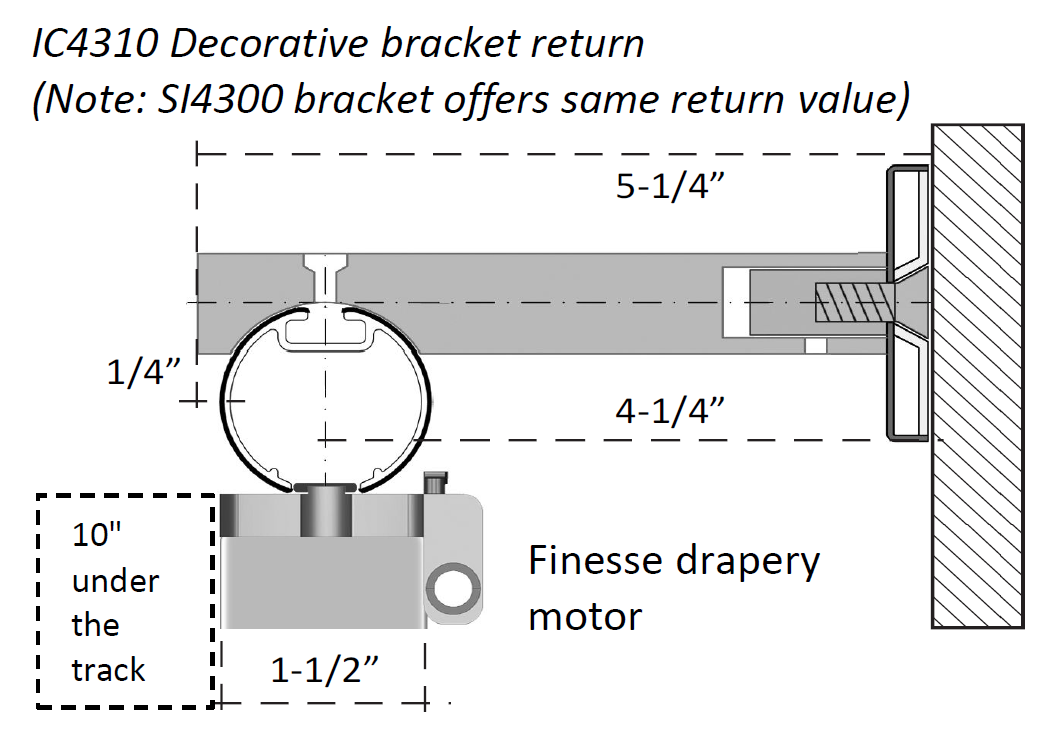

| Recommended bracket spacing | maximum 32" on centre (24" for ceiling mount / extra brackets at stack are recommended) |
