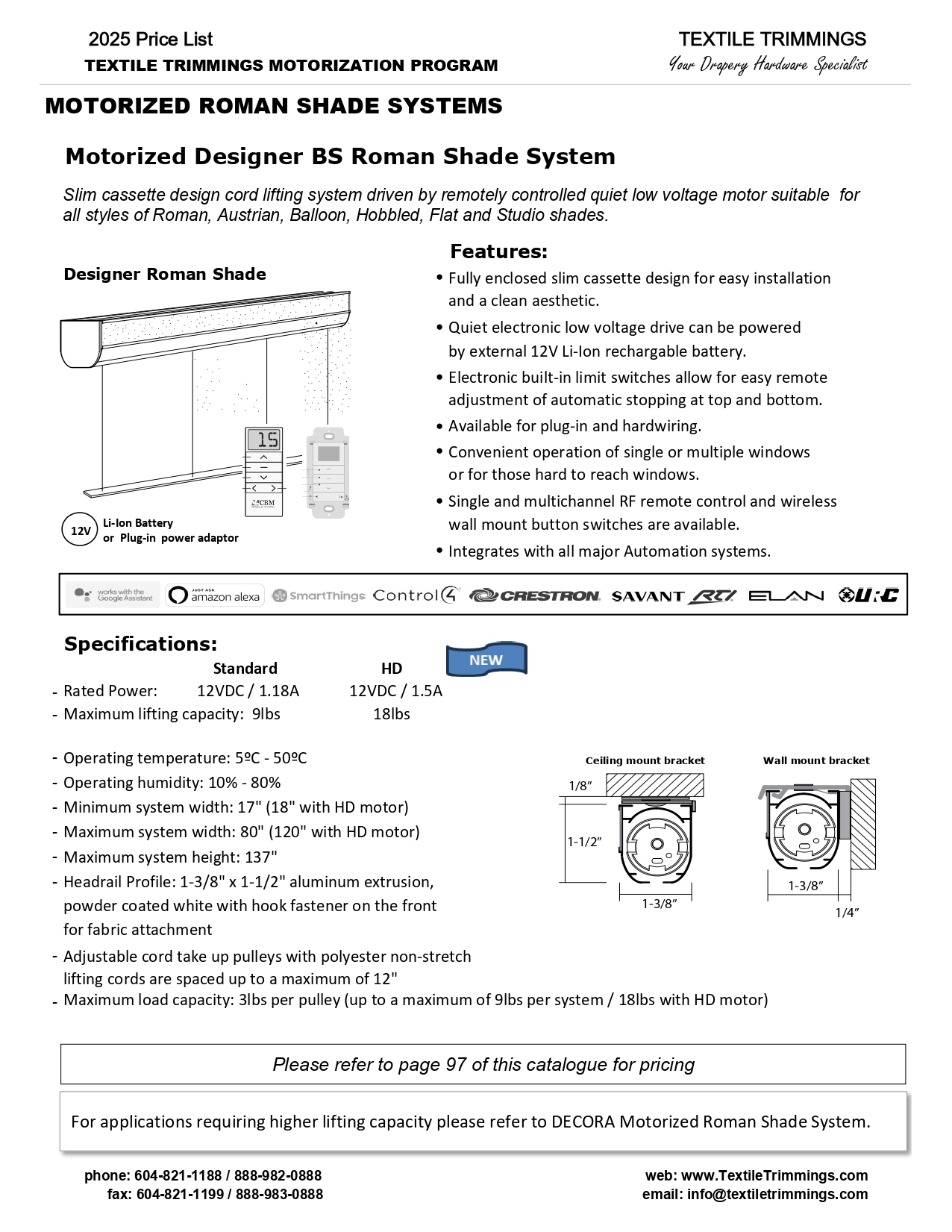

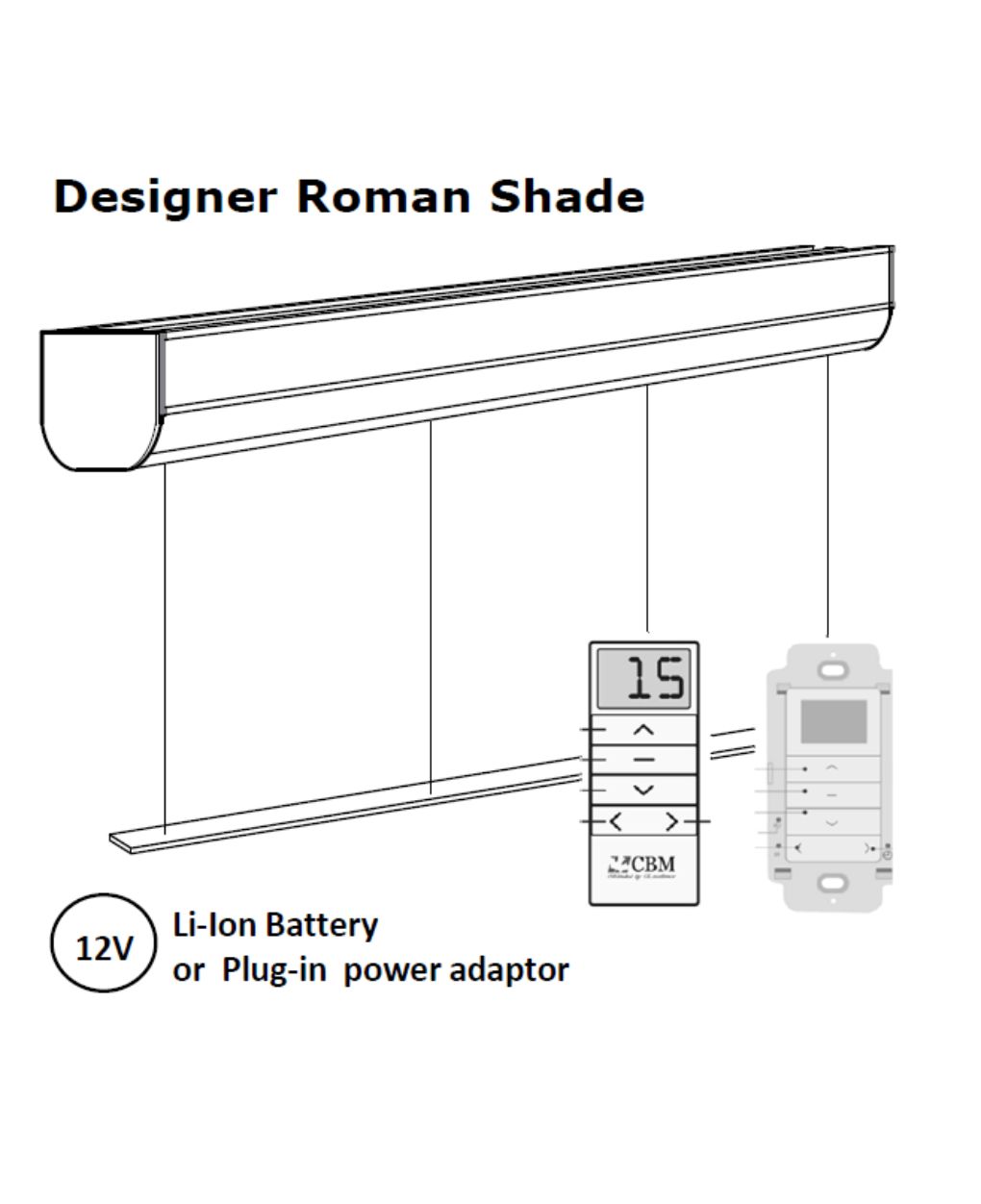

Motorized Designer Roman Shade System
Slim cassette design cord lifting system driven by a remotely controlled quiet low-voltage motor suitable for all styles of Roman, Austrian, Balloon, Hobbled, Flat, and Studio shades.
Integrates with
Features

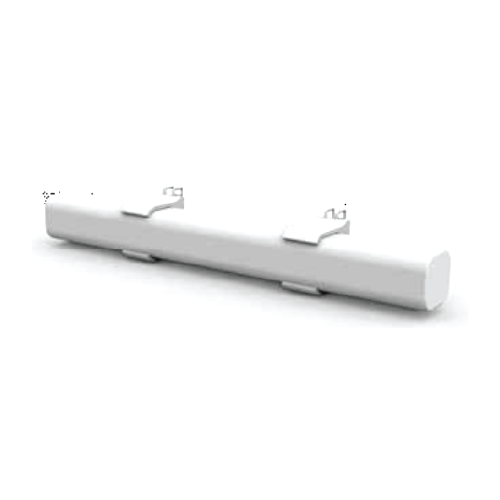

Fully enclosed slim cassette design for easy installation and a clean aesthetic.
Quiet electronic low voltage drive can be powered by external 12V Li-Ion rechargable battery.
Electronic built-in limit switches allow for easy remote adjustment of automatic stopping at top and bottom positions.
Available for plug-in and hardwiring, or with built-in battery.
Convenient operation of single or multiple windows or for those hard to reach windows.

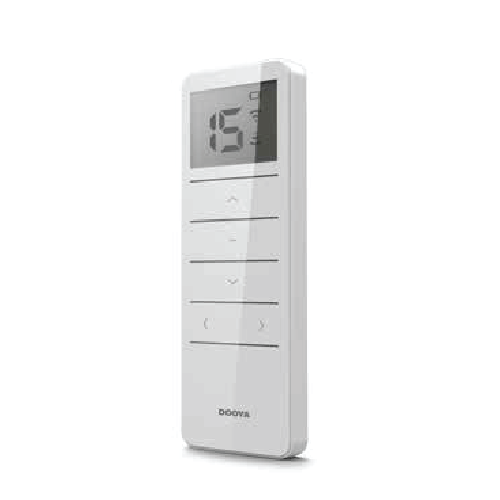

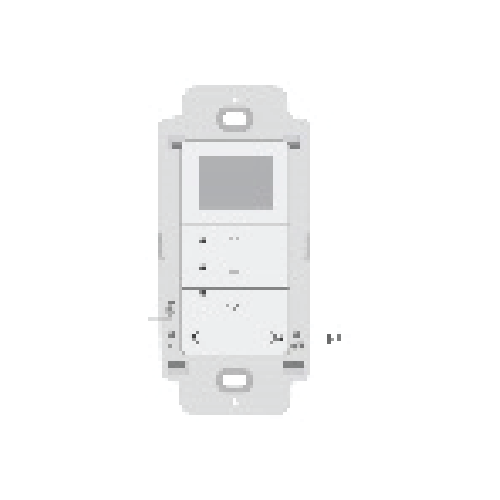

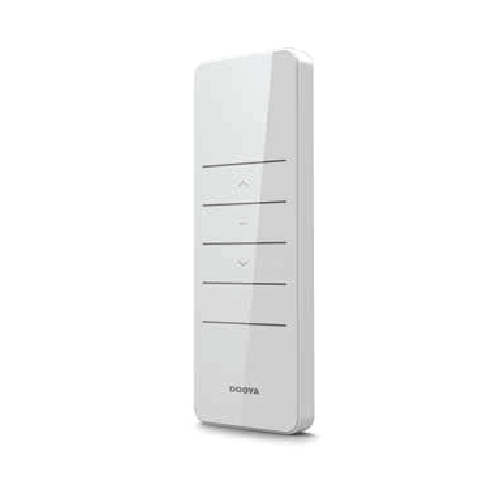

Single and multichannel RF remote control and wireless wall mount button switches are available.
Integrates with all major Automation systems.
Specifications
| Standard | HD | |
| Rated Power | 12VAC / 1.18A | 12VAC / 1.5A |
| Maximum lifting capacity | 9lbs | 18lbs |
| Operating temperature: | 5ºC - 50ºC | |
| Operating humidity: | 10% - 80% | |
| Minimum system width: | 17" (18" with HD motor) | |
| Maximum system width: | 80" (120" with HD motor) | |
| Maximum system height: | 137" | |

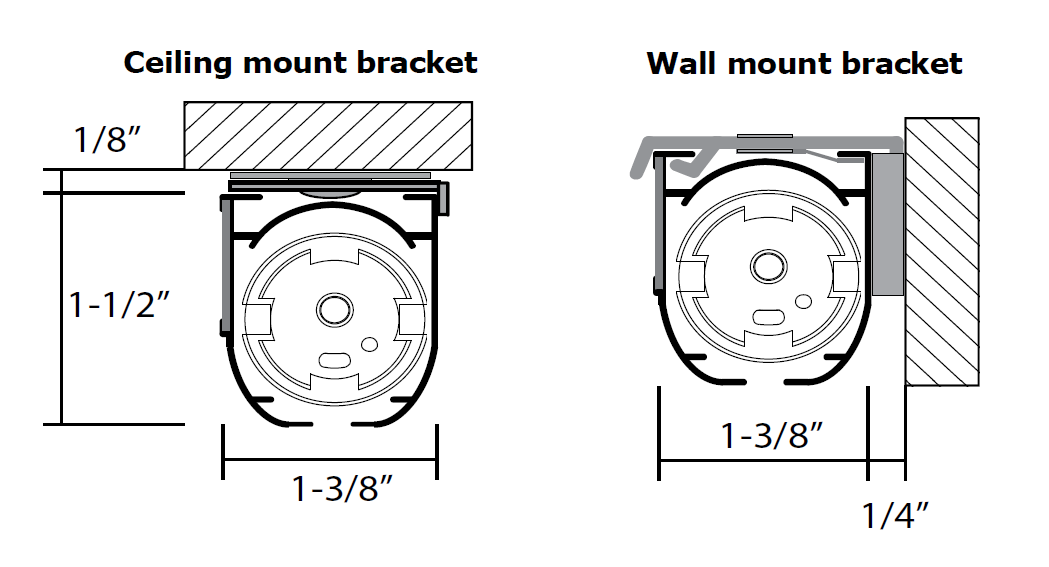

| Headrail Profile: | 1-3/8" x 1-1/2" aluminum extrusion, powder coated white with hook fastener on the front for fabric attachment | |
| Adjustable cord take up pulleys with polyester non-stretch lifting cords are spaced up to a maximum of 12" | ||
| Maximum load capacity: | 3lbs per pulley (up to a maximum of 9lbs per system / 18lbs with HD motor) | |
