Motorized Drapery System
Standard Motorized Roman Shade System
Compact and efficient remotely controlled tubular lifting system driven by quiet low voltage motor suitable for all styles of Roman, Austrian, Balloon, Hobbled, Flat and Studio shades.
Smartphone App control available
Features
Compact Design
Fully enclosed cassette profile with pre-attached hook fastener tape and smart click brackets for quick setup.
Quiet Tubular Motor
Powered by a 24VDC or 7.4V rechargeable Li-Ion battery pack, ensuring silent operation.
Electronic Limit Switches
Features built-in electronic limit switches for easy remote adjustments of automatic stopping at both top and bottom.
Versatile Power Options
Available for both plug-in and hardwiring installations, catering to different user needs.
Convenient Operation
Can control single or multiple windows, ideal for hard-to-reach locations.
Remote Control & Integration
Includes a 6-channel RF remote control (optional timer) and a 4-channel wireless wall switch, compatible with all Finesse drape & shade systems and integrates with major automation systems.
Specifications
| DC power | Battery power | |
| Power supply | 24VDC/0.45A | 7.4V Li-Ion /2200mAh |
| Rated torque | 1.1Nm | 1.1Nm |
| Max lifting capacity | 9lbs | 9lbs |
| Rotary speed | 22rpm | 15rpm |
| Noise level | 39dB | 32dB |

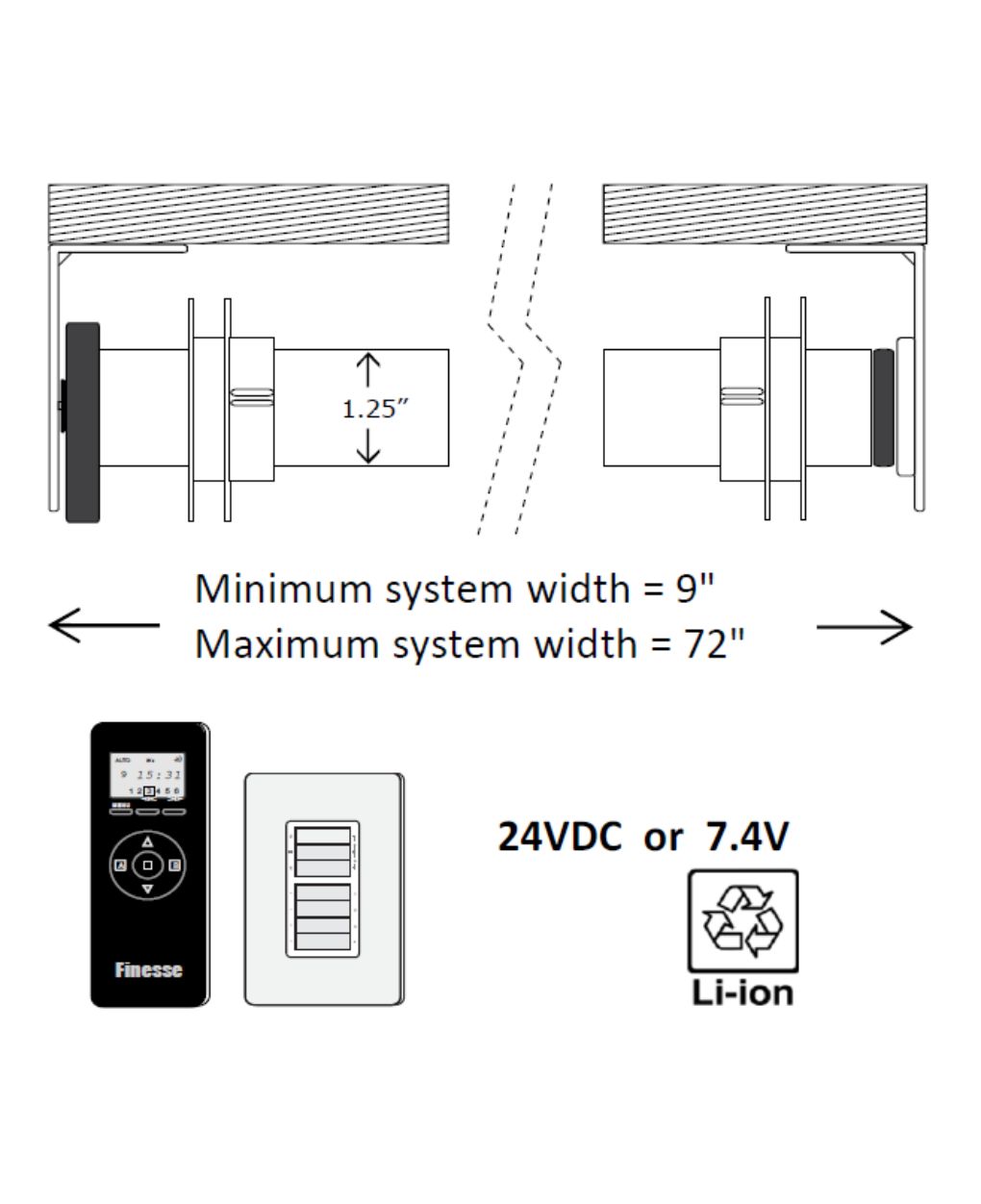

| Min system width | 9" | 13" |
| Max system width | 72" | 60" |
| Max system height | 96" | 96" |
| Operating temperature | 5ºC - 50ºC | |
| Operating humidity | 10% - 80% | |
| Maximum load capacity | 3lbs per pulley (up to a maximum of 9lbs per system) | |
| Other | Adjustable cord take up pulleys with 6mm non-stretch lifting tape are spaced up to a maximum of 20" | |
