SPRING ROMAN SHADE SYSTEM

WITH ADVANCED CHAINLESS CONTROL

COMPLIANT WITH HEALTH CANADA’S

CHILD SAFETY REGULATIONS

This Roman Shade system features an internal advanced
spring mechanism with smooth hand control by just a pull of a
bottom bar. It can be stopped at any position, and rolls up
continuously like a motorized system.

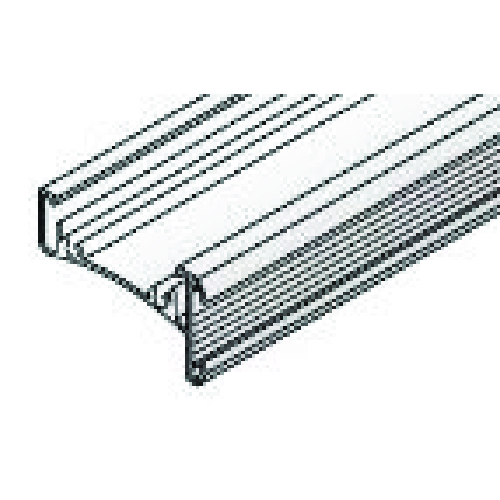

Headrail Profile Dimensions: 36mm x 23mm (1½” x 7/8″)

Minimum System Parameters:
Width: 19″
72″ Maximum Height / 2.2lbs Maximum Lifiting Capacity

Maximum System Parameters:
Width: 90″
96″ Maximum Height / 6lbs Maximum Lifiting Capacity

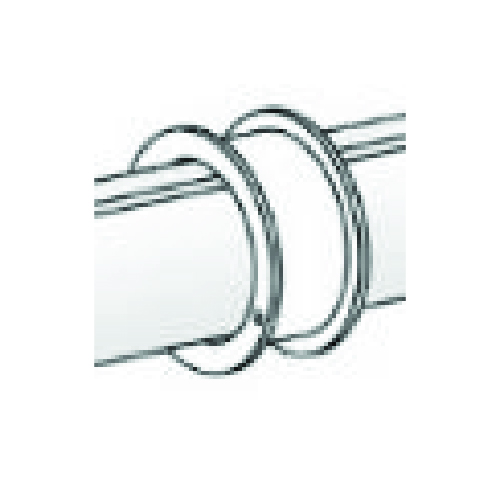

Lifting spools can easily be adjusted after installation and

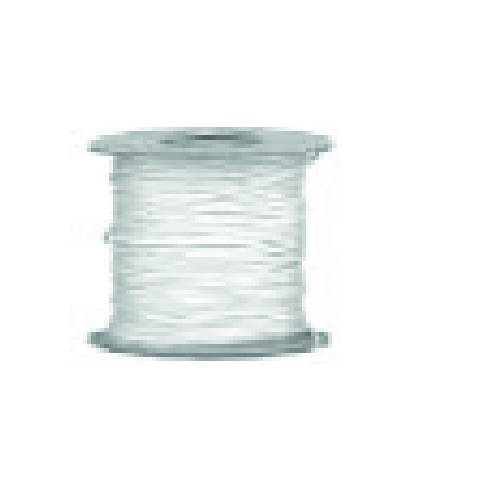

come standard with 100″ of lifting cord pre-attached.

No Tension Device Required.

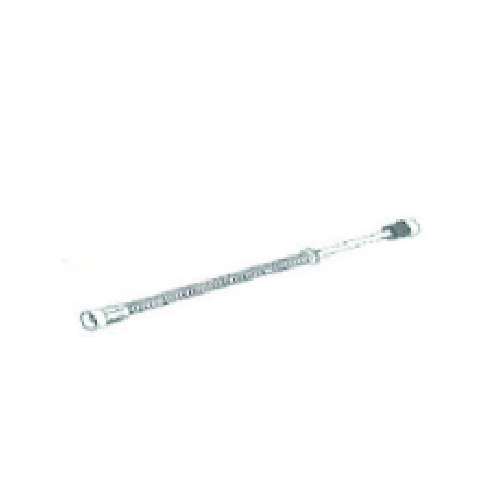

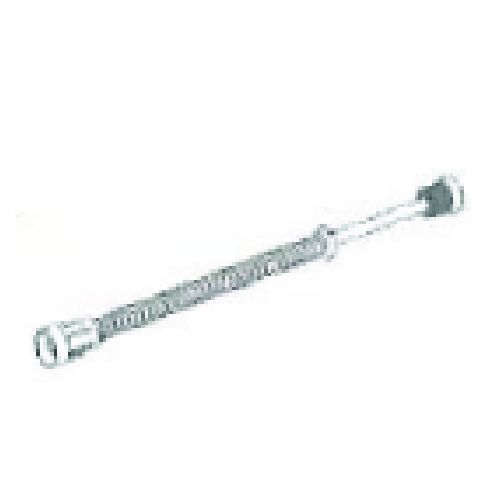

Please note that this systems requires tune up upon installation – spring tension must be adjusted
depending on fabric weight and style to achieve required performance.

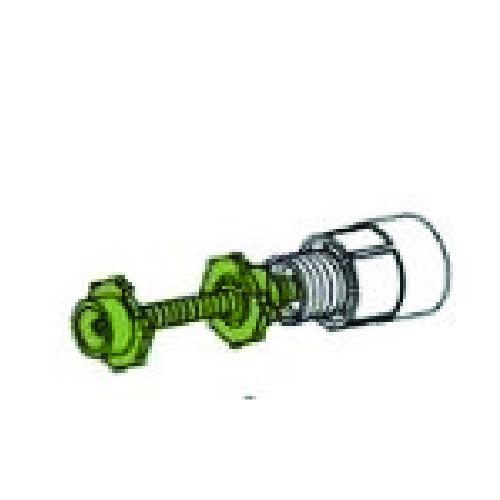

Up stop limit position might need adjustment as well, for more information please refer to diagram below:
